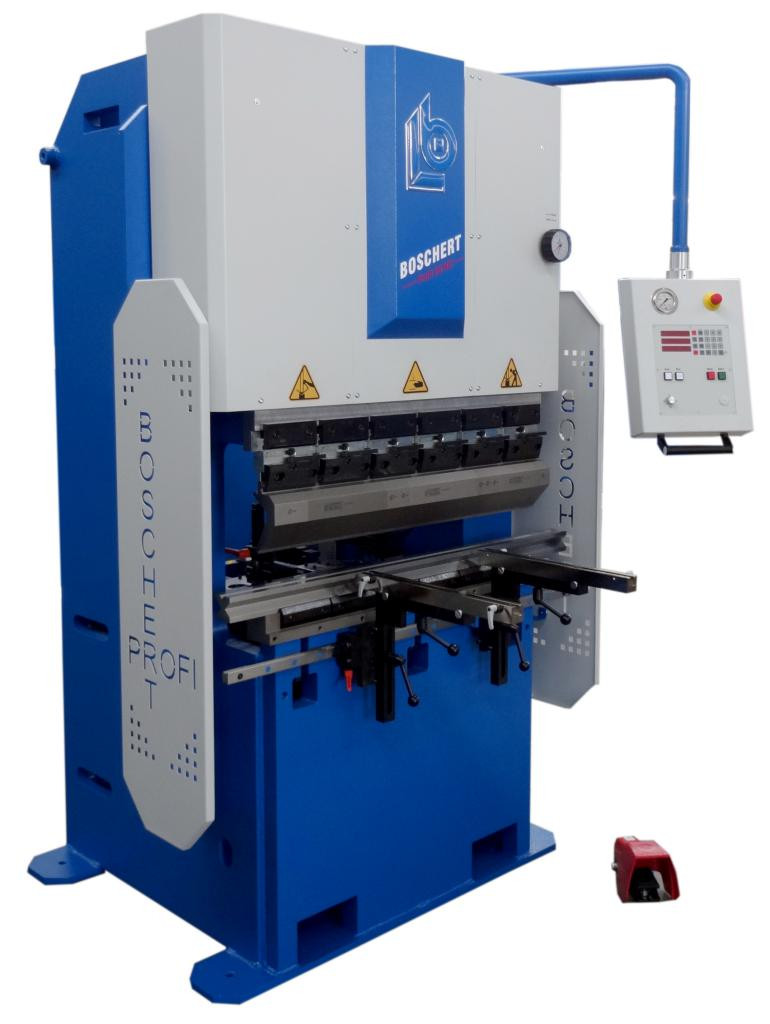

ProfiBend 28
| Bending force | 280 kN | |
| Bending length | 1000 mm | |
| Weight | 3500 Kg | |
| Width | 1.500 mm | |
| Depth | 1.310 mm | |
| Height from floor | 2.200 mm | |
| Distance between the frames | 890 mm | |
| Throat depth | 200 mm | |
| Width of worktable | 2 x 270 mm | |
| Operating height | 915 mm | |
| Daylight | 305 mm | |
| Y-Travel | 200 mm | |
| Max. stop range in X | 370 mm | |
| Downspeed | 8-10 mm/s | |
| Upstroke speed | 30 mm/s | |
| Repeatability | +/- 0,02 | |
| Power supply kVA | 5.5 kVA | |
| Control | Hejm |
ProfiBend 28 CNC
| Bending force | 280 kN | |
| Bending length | 1000mm | |
| Weight | 3500 Kg | |
| Width | 1.500 mm | |
| Depth | 1.310 mm | |
| Height from floor | 2.200 mm | |
| Distance between the frames | 890 mm | |
| Throat depth | 200 mm | |
| Width of worktable | 2 x 270 mm | |
| Operating height | 915 mm | |
| Daylight | 305 mm | |
| Y-Travel | 200 mm | |
| Max. stop range in X | 370 mm | |
| Working speed | 8-10 mm/s | |
| Upstroke speed | 30 mm/s | |
| Repeatability | +/- 0,02 | |
| Power supply kVA | 5,5 kVA | |
| Control | Labod / Cybelec |
ProfiBend 56 CNC
| Profi 56/1000 CNC | Profi 56/1400 CNC | Profi 56/2200 CNC | |
| Bending force | 560 KN | 560 KN | 560 KN |
| Bending length | 1000 | 1400 | 2200 |
| Weight | 3800 Kg | 4800 Kg | 5500 Kg |
| Width | 1500 mm | 1600 mm | 2700 mm |
| Depth | 1310 mm | 2010 mm | 1670 mm |
| Height from floor | 2200 mm | 2200 mm | 2200 mm |
| Distance between the frames | 890 mm | 1260 mm | 2100 mm |
| Throat depth | 200 mm | 200 mm | 200 mm |
| Width of worktable | 2 x 270 mm | 2 x 270 mm | 2 x 270 mm |
| Operating height | 915 mm | 915 mm | 915 mm |
| Daylight | 305 mm | 305 mm | 305 mm |
| Y-Travel | 200 mm | 200 mm | 200 mm |
| Max. stop range in X | 370 (500) mm | 370 (500) mm | 500 mm |
| Working speed | 8-10 mm/s | 8-10 mm/s | 8-10 mm/s |
| Upstroke speed | 30 mm/s | 30 mm/s | 30 mm/s |
| Repeatability | +/- 0,02 mm | +/- 0,02 mm | +/- 0,02 mm |
| Power supply | 10 KVA | 10 KVA | 12 KVA |
| Control | Labod / Cybelec | Labod / Cybelec | Labod / Cybelec |
